Electricity Meters

E330/E350 FOCUS AX

The E330 FOCUS® AX and E350 FOCUS AX-SD advanced function residential meters surpass other meters in their class to deliver options you need for a highly functional and affordable metering solution. The combination of the FOCUS Service Disconnect base module and powerful AX… Lire la suite…


Key features include:

  • Most advanced cam-driven switch design to withstand 10K cycles at full rated current
  • Durable switch that continues operation, even under low voltage conditions
  • Prepay ready
  • Power quality data (sag/swell)
  • Magnetic/DC presence detection (based on leading current)
  • 8 channels of load profile
  • Surpasses ANSI requirements for surge protection (10KV) and meter accuracy
  • Full 200 amp disconnect rating
  • Advanced over-the-air-flashable firmware upgrades avoids loss of billing utility requirements

Reactive energy and power quality measurements functions deliver empowering data to run advanced applications such as voltage monitoring, VAR control and load curtailment.

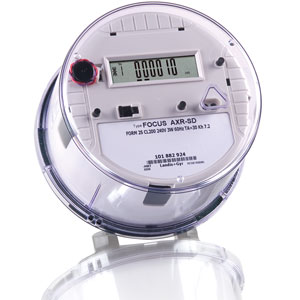

The E350 FOCUS AX-SD incorporates a 200A, motor-driven, cam action disconnect/connect switch under the meter cover. This advanced, market-leading switch, coupled with the field-proven reliability of the E350 AX-SD, delivers Landis+Gyr’s third-generation design answer to today’s evolving utility requirements.
