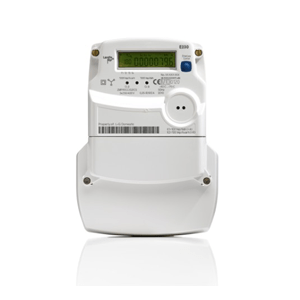

Landis+Gyr E230 Residential Light Commercial Credit Meter

Description:

Comprehensive functionality for households and small businesses

The E230 is a standalone residential, light commercial credit meter designed to meet a various range of customer needs across a diverse wide ranging markets. With a reputation for high quality, Landis+Gyr has created a cost effective electricity meter for residential and light commercial applications that provides an extensive variety of features making it suitable for many installation purposes.

This cost effective metering solution can reduces total cost of ownership and management costs through enhanced functions and high quality design:

• Multiple measurement channels with full four quadrant energy measurement technology
• Improve customer services with advanced billing and load profiles
• Reduced theft and losses due to maximum security features
• Easy installation and trouble free diagnostic solution
• Large LCD displaying information clearly for accurate meter reading
• Communications options for AMR and data acquisition

Highlights

The E230 is an integrated, direct connected meter which can record active and reactive energy consumption primarily in three phase four wire networks and provides up to six tariffs. The meter can operate in four-wire networks in one, two or three phase configurations as well as three-wire networks. The meter conforms to IEC 62053, EN 50670 (MID) in its mechanical specification and is suited to installation in any situation that also meets these standards.

Electronics

• Active and reactive measurement
• Accuracy up to Cl 1 resp. Cl B (MID) [active energy] and Cl 2 [reactive energy]
• Wide range measurement from starting current to maximum current
• Up to 6 rates possible
• Large liquid crystal display with max. 8 digits for the value and high resolution
• Buttons for display control, MD reset, billing resetting and advance
• Optical and electrical interfaces
• Optical test outputs
