Electricity Meters

Landis+Gyr E860

The latest addition to our Landis+Gyr grid metering family is our flagship E860 electricity meter. The product provides high-precision electricity metering capabilities designed for power plants, photovoltaics, on-shore and off-shore wind farms, transmission networks, substations, railway infrastructure and grid-connected commercial and industrial consumers. Lire la suite…

Contactez-nous
Caractéristiques
  • Highest precision measurement of active 0.1S and reactive 0.5S energy
  • Integrated period of measurement 100ms, with subintervals of 20ms
  • High measurement stability even in difficult installation environments
  • Very large memory capacity for data collection and processing at the edge
  • Improved local readability and installation via dot-matrix display
  • Packs advanced AMI features, such as HLS, RBAC, remote firmware upgrade and others
  • Contains advanced power quality features, including waveform capture
  • Includes new time synchronization capabilities (IRIG-B, PTP, SNTP, NTP)
  • Supports IEC 62056 DLMS-COSEM, IEC 61158 Modbus, IEC 60780-5-104 SCADA, IEC 61850 and other grid protocols
  • Comes with E86E extension modules for additional local connectivity options (pulse outputs, control inputs/outputs, relays)
  • Comes with E66C communication modules enabling RS-485, Cellular as well as Ethernet connectivity
Variantes

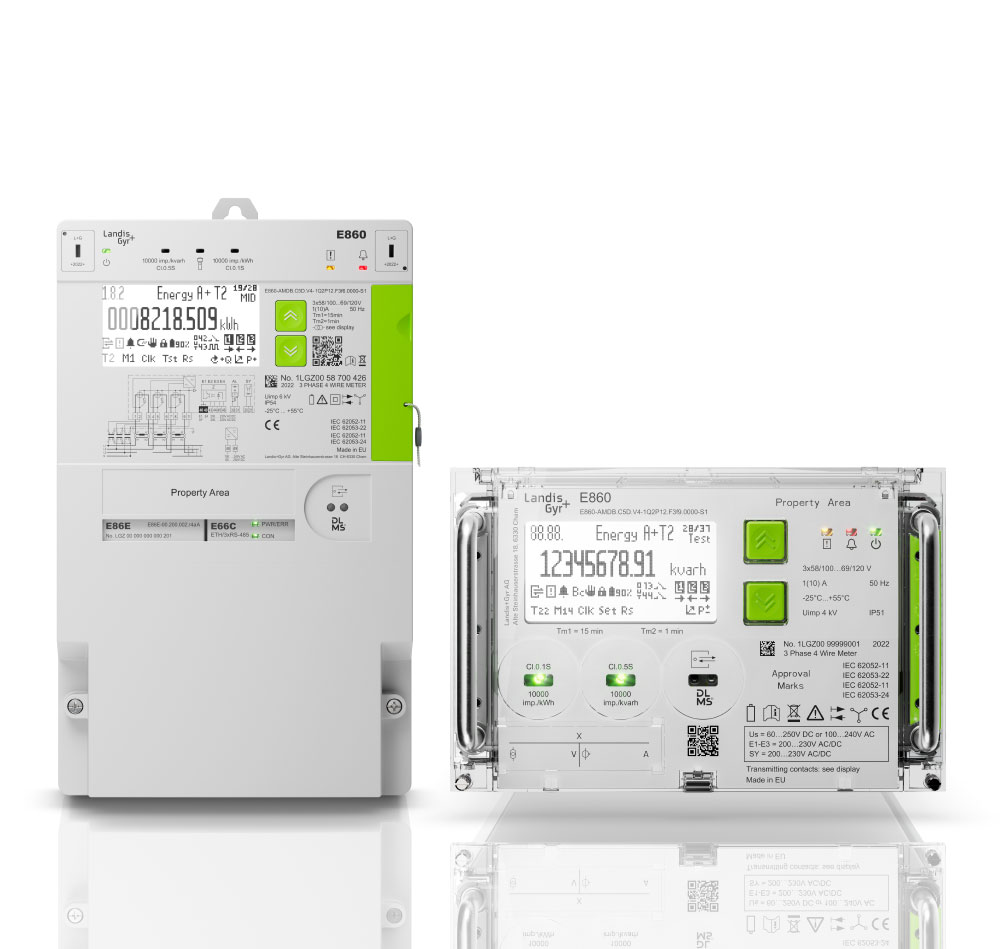

  • E860 f6 – wall mounted
  • E860 f9 – rack mounted
  • Available with easy-to-use E86E extension modules
  • Available with easy-to-use and highly configurable E66C portfolio of communication modules
Availability
  • Europe, the Middle East and Africa
