Landis+Gyr RCR Ripple Control Receivers
Ripple Control is a mature and cost-effective technology for tariff and load control. Landis+Gyr Ripple Control Receivers RCR cover a wide range of applications from simple remote switching of the relays to individually parameterizable timers. Lire la suite…
Description:
Smart combination of ripple control and time switch
Landis+Gyr RCR ripple control receiver supports a lean and cost-effective functional concept for basic receiver requirements. Outstanding features are the seven-day time switch for easing transmitter load and the learning function for autonomous switching operation in case of transmitter outage.
The combination of ripple control and seven-day time switch functions in one unit ensures a reliable operation of the ripple control installation. Depending on the device type up to six change-over switches (25 A) or 40 A relays can be plugged-in and individually parameterized via interpreter programs.
Caractéristiques
- Seven-day time switch (time and weekday synchronization by means of ripple control transmission)
- Learning function: Memorizing switching operations and automatic repetition
- LED for operational status display
- Interpreter programs for free allocation of addresses and commands to relays
- 16 interpreter programs including 4 with timing functions
- Relay status confirmation for fraud prevention
- Event log
- Automatic correction of pulse distortion
- Signal level storage of last message
- Transmitter outage detection (failsafe)
- Programmable response to power outages and restoration of power
- Test function with test button
- Plug-in EEPROM for program memory

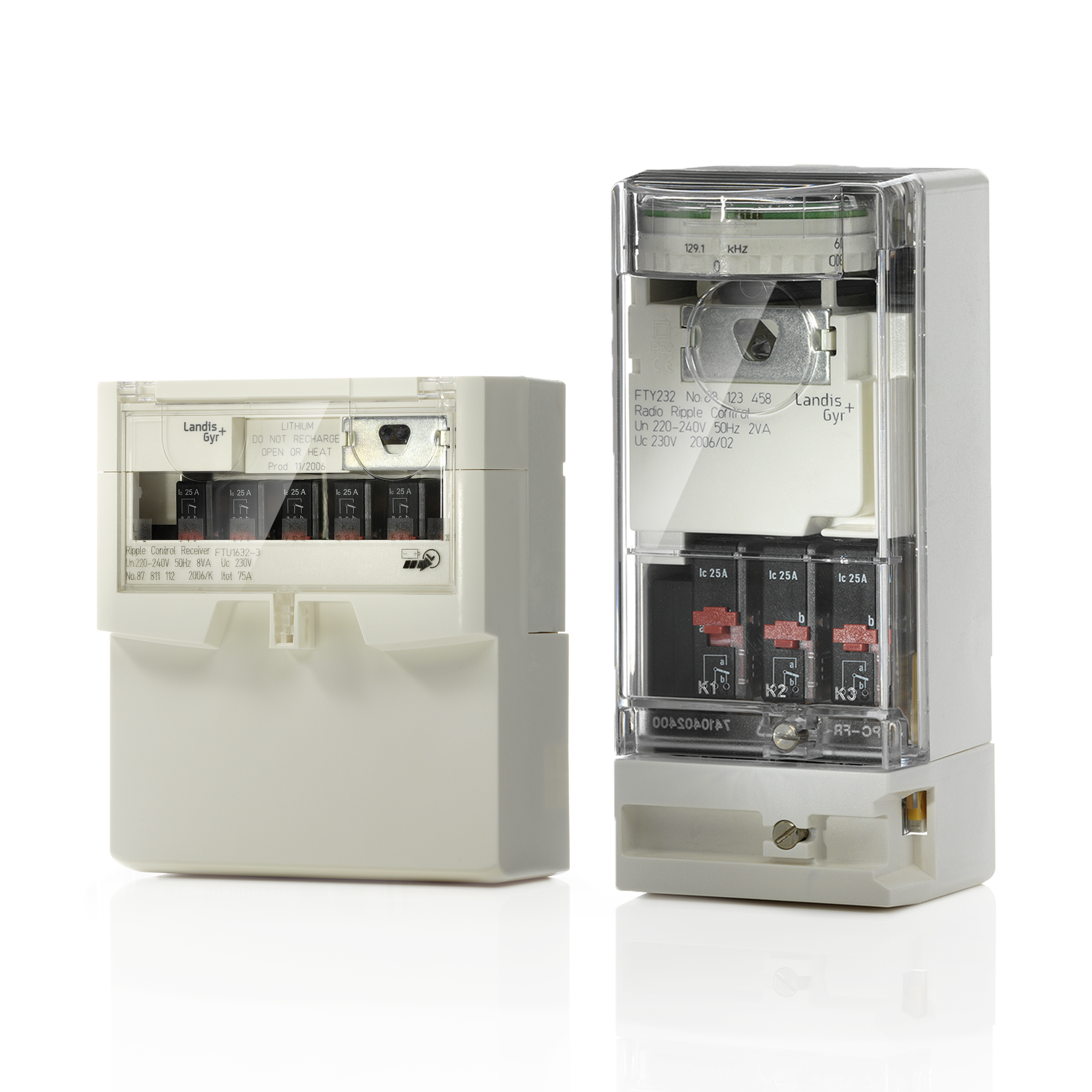

Variantes

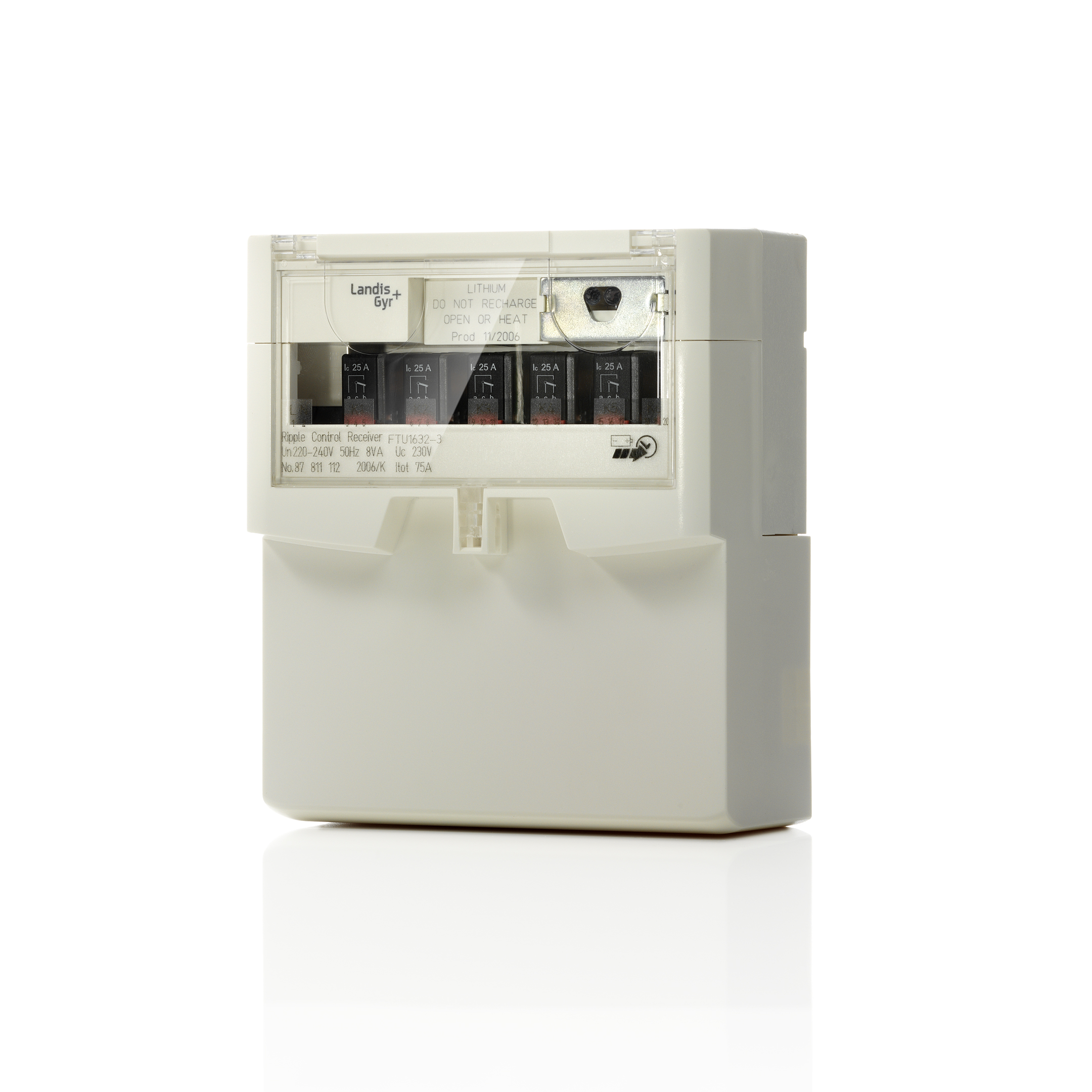

- RCR131 with up to 3 plug-in 25 A changeover switches, compact housing and 3 different sizes of terminal covers

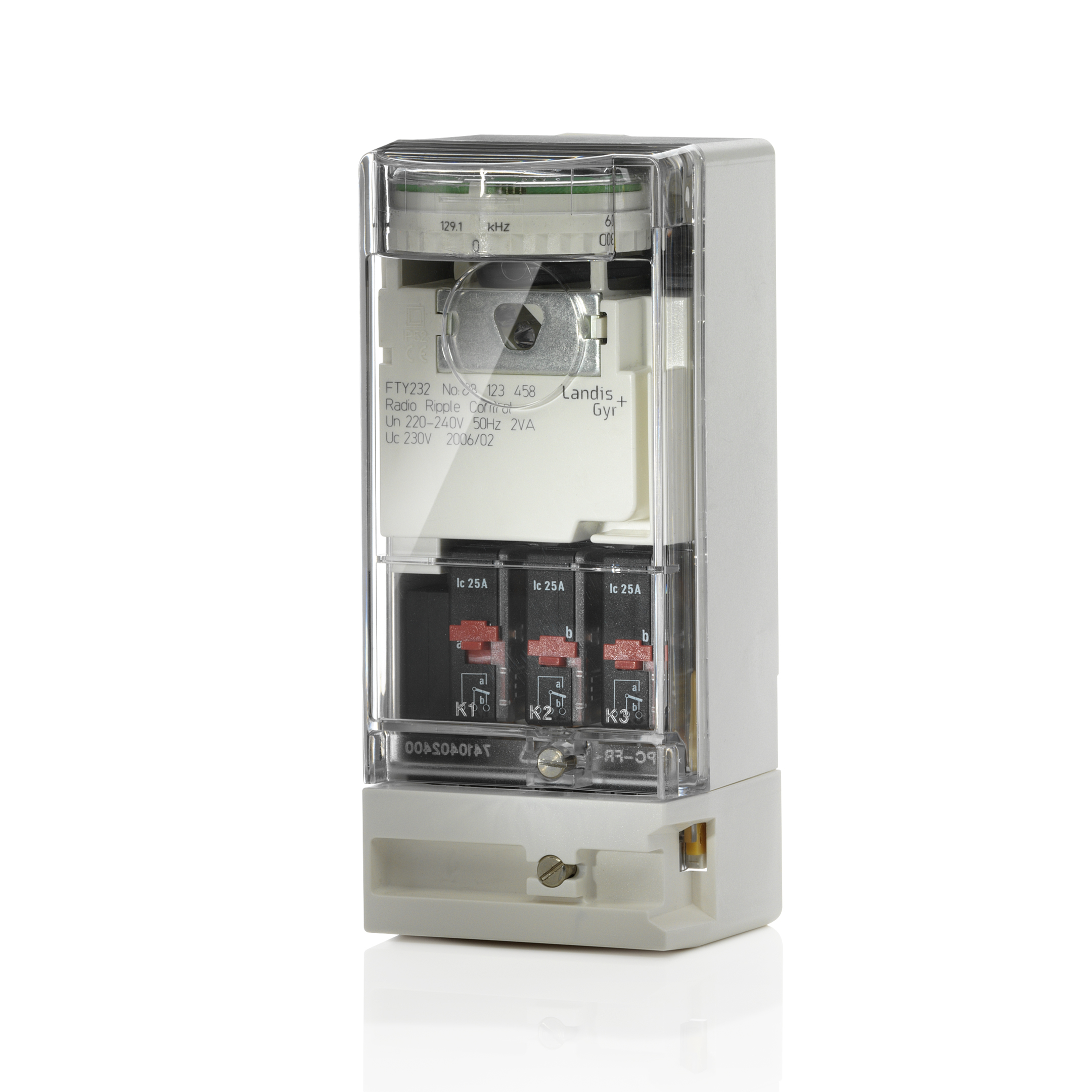

- RCR161 with up to 6 plug-in 25 A changeover switches or 40 A relays and 2 mounting options: panel mounting or installation on meter terminal cover
Availability
- Europe, the Middle East and Africa
