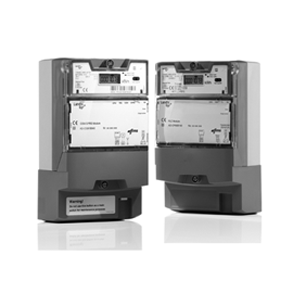

Landis+Gyr ZCF100 AC/AB
Metering technology proven a million times over, combined with the most modern features from the world of communication: the ZCF100 intentionally caters to the needs of advanced metering applications. For the first time, a proven feature of Landis+Gyr industrial meters moves into the domestic sector: the communication unit is modular and can be re-equipped at… Lire la suite…
The single phase AMM meter with advanced security features, modular communication and optional disconnect functionality
Metering technology proven a million times over, combined with the most modern features from the world of communication: the ZCF100 intentionally caters to the needs of advanced metering applications. For the first time, a proven feature of Landis+Gyr industrial meters moves into the domestic sector: the communication unit is modular and can be re-equipped at any time, which improves investment security even more.
The single-phase direct connection can be used in one-phase environments. The two tariff and total registers predestine the ZCF100 for use in the domestic market, while the optional Class 1 version fulfills the highest demands for accuracy. As with all electronic meters from Landis+Gyr, the ZxF series has several functions for the recognition of fraud and theft.
Technology upgrades by module
Today's PLC read-out with wire connection is also tomorrow's comprehensive advanced metering by satellite: the interchangeable AMR module makes the ZCF100 a secure investment in a liberalized energy market. The base station focuses on basic functions while customized solutions that are possible with broadband will also increase for the AMR module.
Maximum investment security
The ZCF100 is the ideal platform for remote read-out and integration in advanced metering systems. The modular concept offers high investment protection; AMR modules can also be developed and offered by a third-party provider. At this time, the available modules are:
- PLC module with DLMS support
- GSM/GPRS module with DLMS support
System integration made easy
Important today, but critical for tomorrow's success: investments for a liberalized energy market require flexibility and support from standards. Naturally, the ZCF100 is ideal for being combined with other metering systems from Landis+Gyr, but can also be integrated with external systems quickly and easily. As a member of the broadest household meter portfolio on the market, the electronic domestic range from Landis+Gyr, all meters allow parallel operation and combinations. In addition, the MAP software simplifies parametrization and maintenance.
- Modular hardware for high future-proofness
- Specially developed for use with AMR and AMM systems
- Direct single-phase connection, can be used in one-phase environments
- Current range up to a maximum of 80 A
- Environmentally friendly disposal
- Two import/export tariffs
- Instantaneous current measurement
- Accuracy Class 1 (110)
- Accuracy Class 2 (120)
- Shutdown device for non-payment of services
- Terminal Cover removal detection
- DC Field Shield
- Europe, the Middle East and Africa
