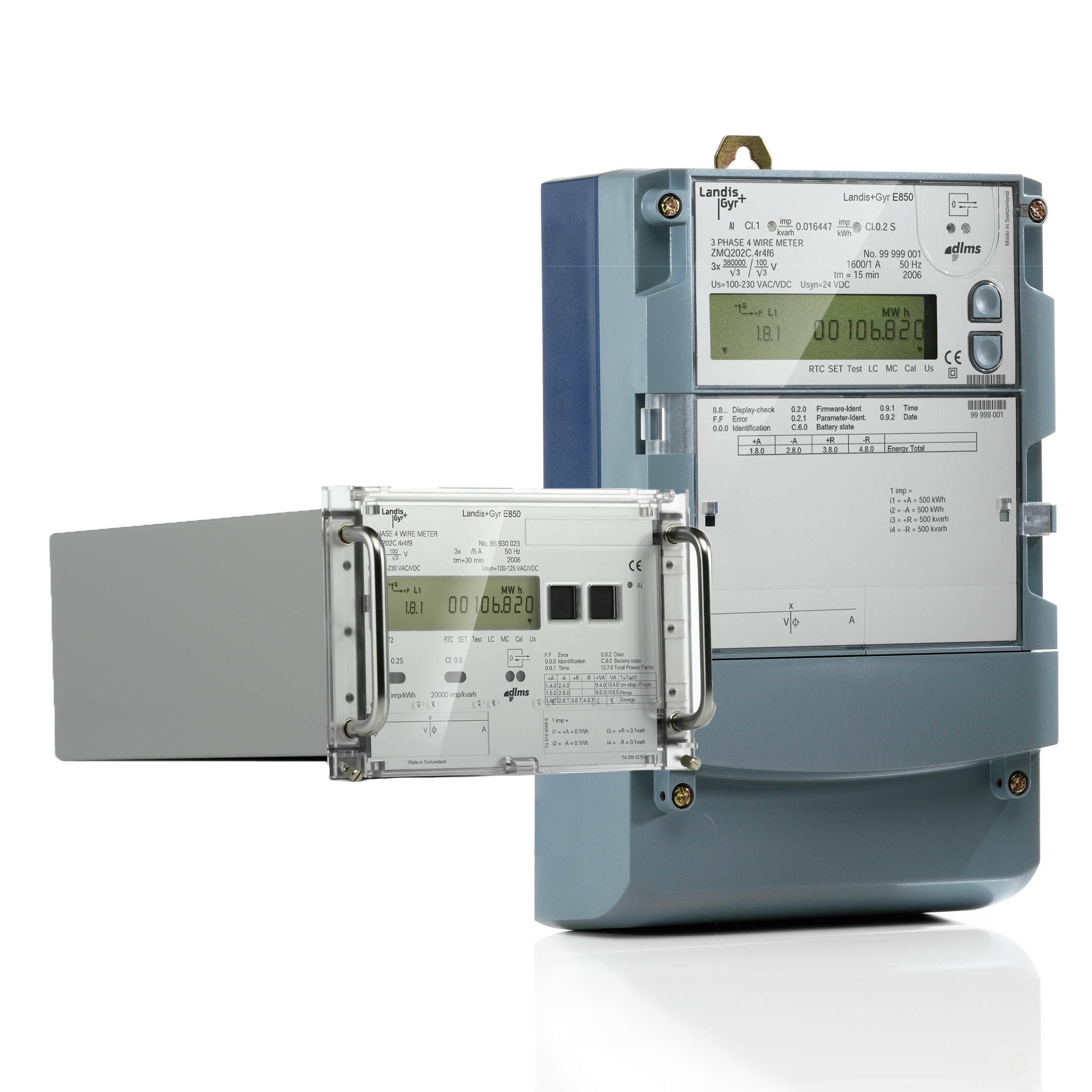

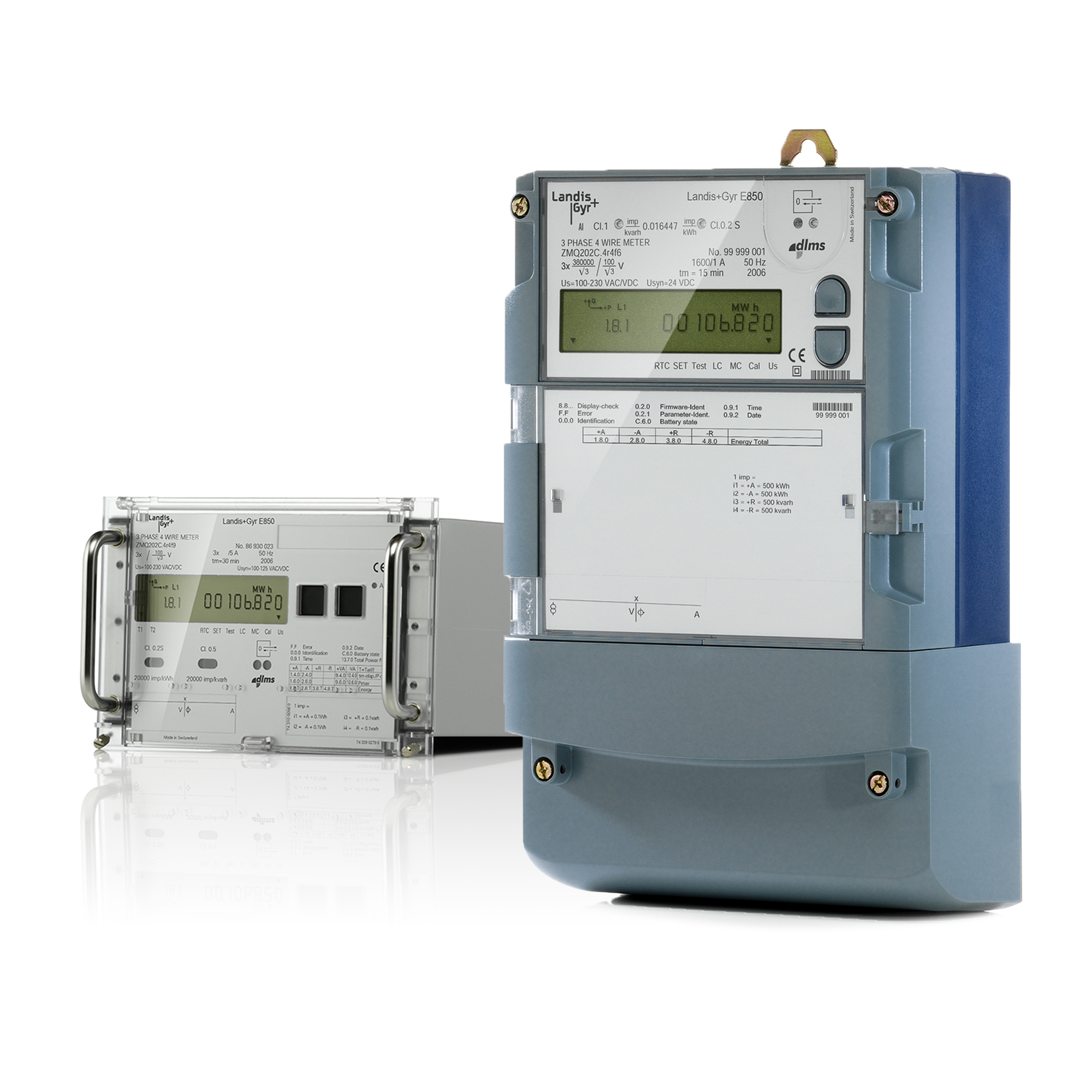

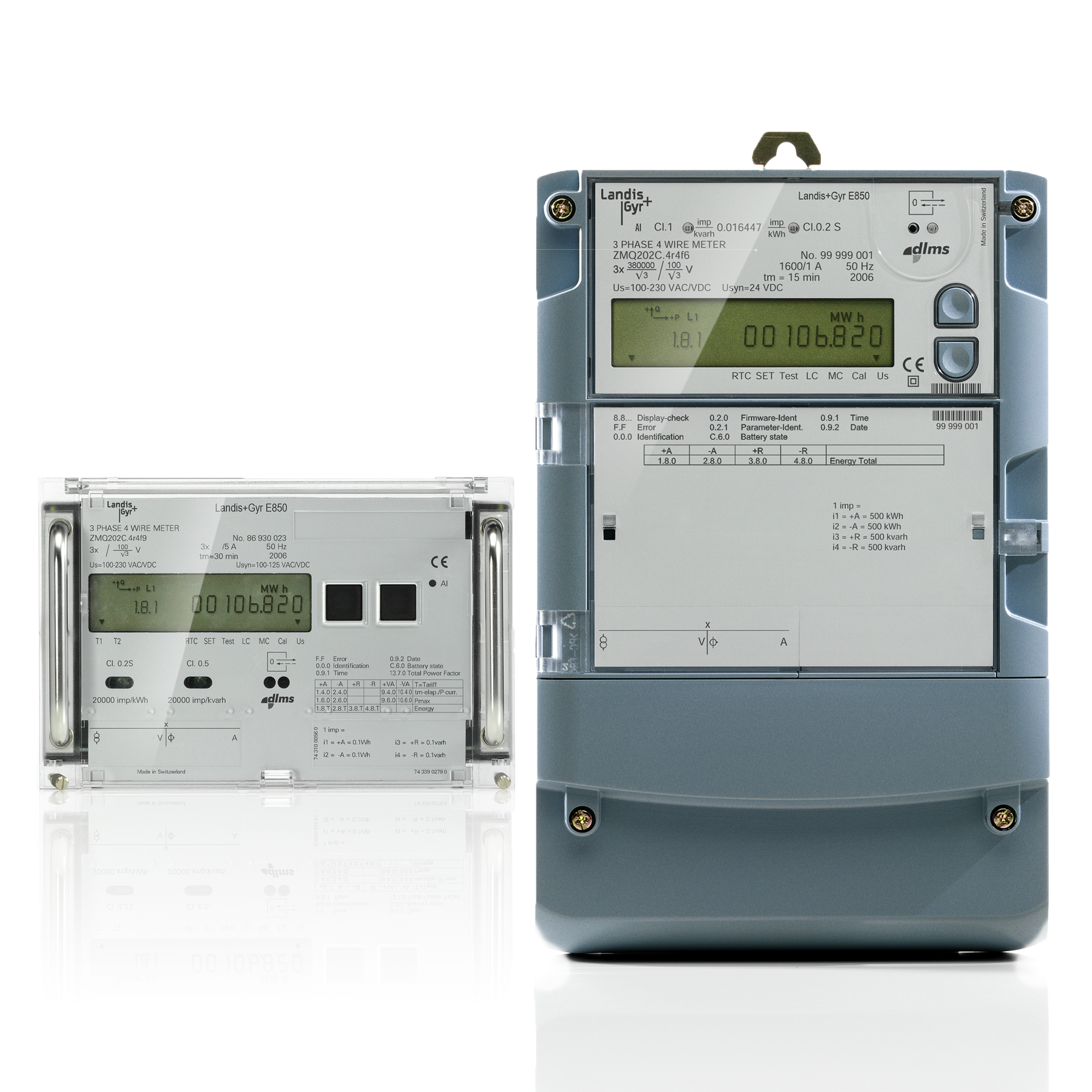

Landis+Gyr E850
Precise values for all billing applications, comprehensive data for network operation: from the very start, the ZxQ series from Landis+Gyr was developed with grid applications in mind. With its exceptionally fast measurement system, high data resolution and proven operational security, it is clear that the ZxQ was designed for use in all applications. Lire la suite…
Caractéristiques
- Accuracy class 0.2S / 0.5S for active energy and 0.5S / 1 for reactive energy
- 50/60Hz and 16 2/3 Hz (for railway infrastructure)
- 8-digit liquid crystal display (LCD) for local reading of data
- Exchangeable communication modules (RS 232 / RS 485 / Ethernet / GSM / GRPS / UMTS (3G))
- Integrated optical interface and RS485 serial interface with DLMS protocol
- Communication with several third-party suppliers
- Up to 8 transmitting contacts (for energy flow, load supervision (Pmax, Qmax), capture period)
- 4-quadrant measurement (+P -P, +Q -Q, Q1..Q4)
- Measurement of instantaneous values of phase voltages and currents
- Phase angle measurement and detection of direction of rotating field
- Monitoring of instantaneous values of voltage (unbalance, over/undervoltage, outage) and current (unbalance, overcurrent)
- Voltage dip table
- Tariff control
- Time-of-use (TOU)
- Load profiles
- Daily snapshot
- Stored billing value profile
- Bypass feeder operation
- Event logs
- Three software configurations
Variantes
Depending on software configuration additional meter functionalities are available:
- Harmonics and total harmonic distortion (THD) monitoring
- Line and transformers losses measurement
- Total losses of active and reactive
- Overload supervision of the line
- CT/VT error correction
- Single phase energy measurement
- Average demand, maximum and cumulated maximum demand
- Apparent energy measurement
- Power factor monitoring
- Frequency monitoring
Availability
- Asia-Pacific
- Europe, the Middle East and Africa
